Concealed sliding hardware
PB09Concealed sliding door system
Wooden doors
- Door weight
- Single door ≤ 80 kg
- Door width
- 800 mm ≤ door width ≤ 1200 mm; / 1200 mm ≤ door width ≤ 1500 mm.
How it works
Key features.
- When the door is closed, the overlap between the door panel and the wall is only 160 mm
- Dual-spring system, self-adjusting to accommodate uneven floors
- Dual-locking mechanism prevents loosening and enhances safety
- Quick-release buffer assembly for easy installation.
At a glance
Technical overview.
| Model | PB09 |
|---|---|
| Application | Single-leaf and double-leaf wooden sliding doors |
| Adjustment | Up and down adjustment |
| Door weight | Single door ≤ 80 kg |
| Door width | 800 mm ≤ door width ≤ 1200 mm; / 1200 mm ≤ door width ≤ 1500 mm. |

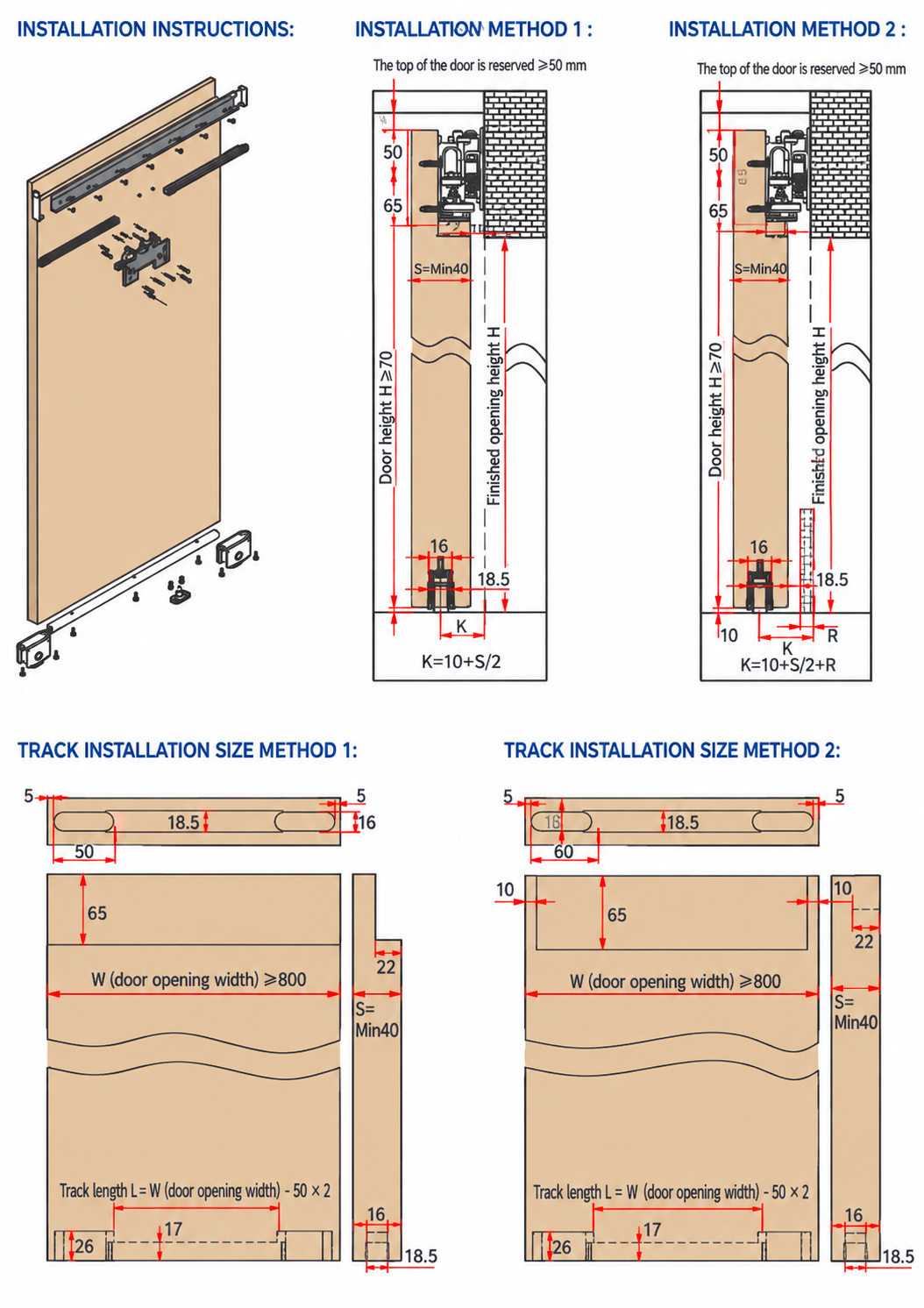

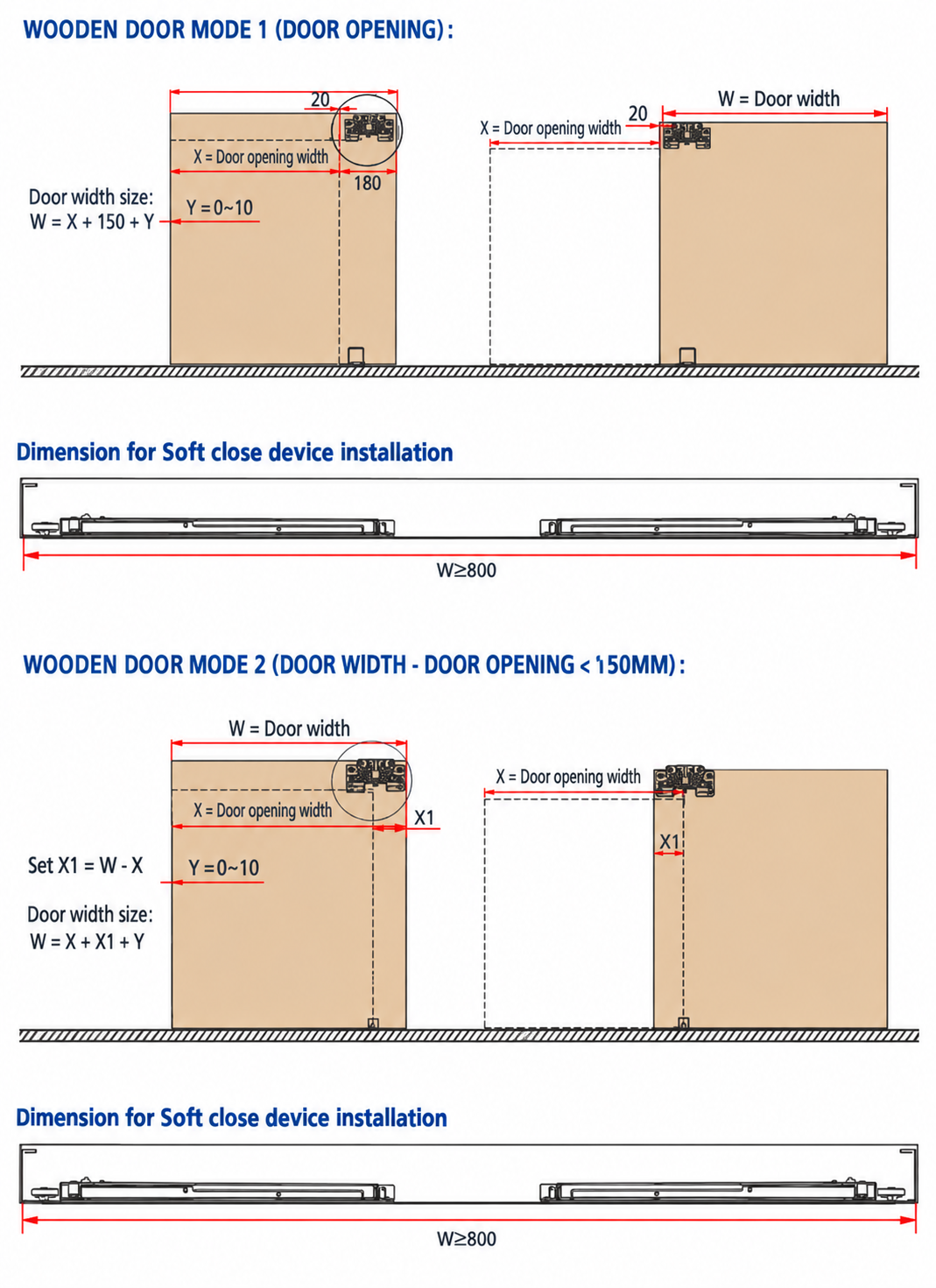

Look closer
Drawings &
components.

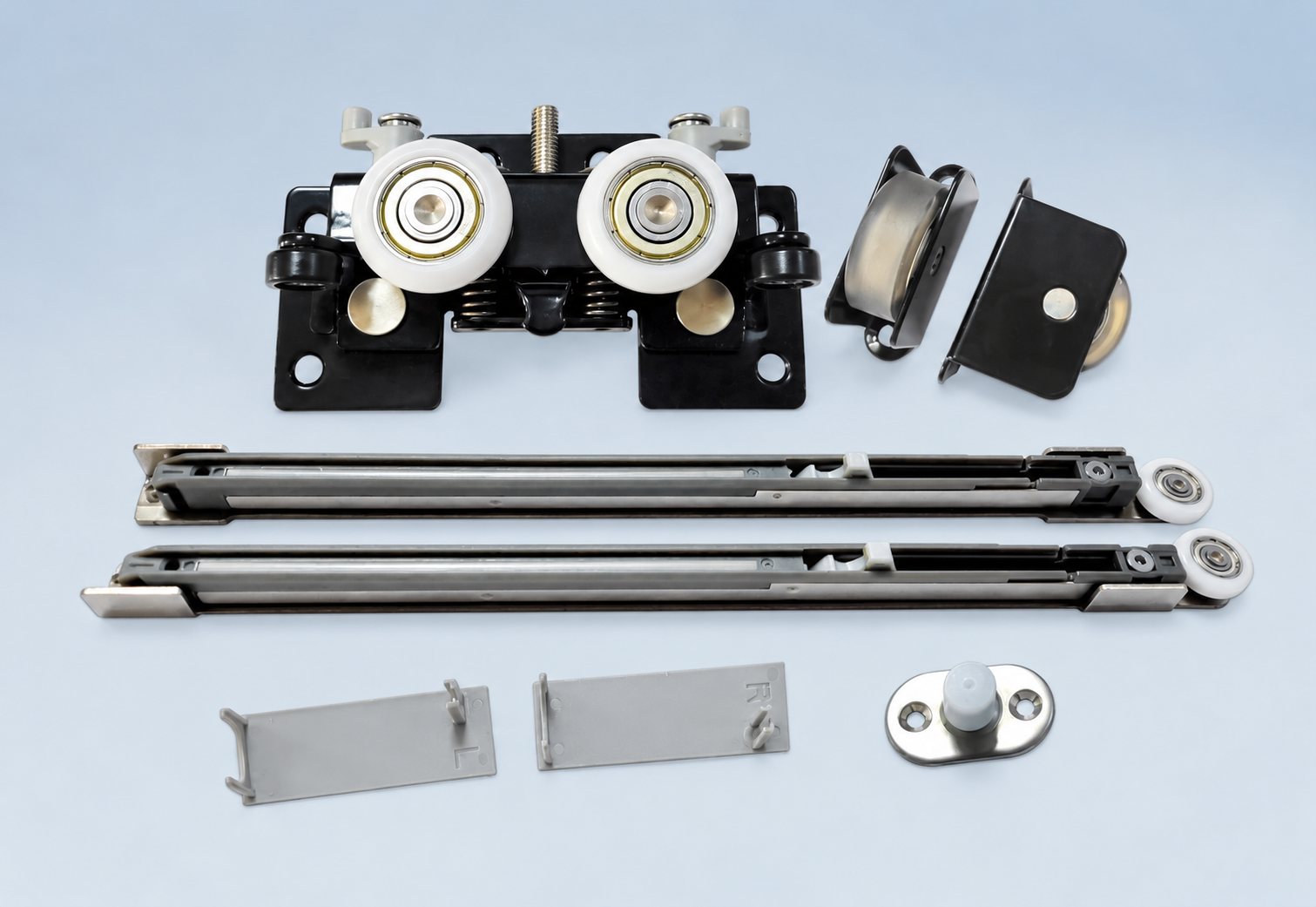

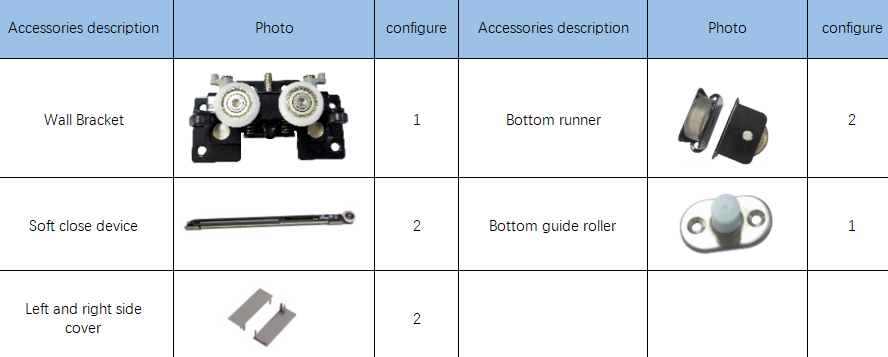

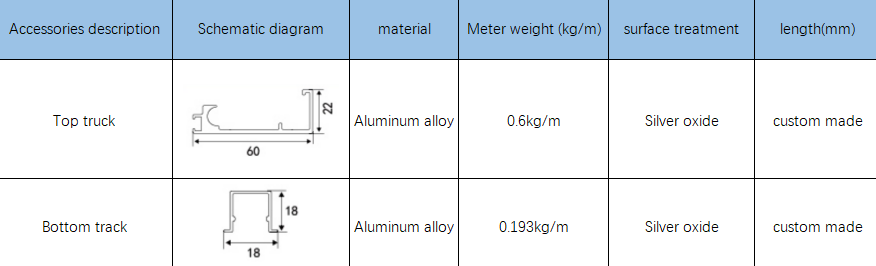

Review the component layouts and installation references for PB09. Select an image to open the original at full size.
Your next step
Let’s discuss
your PB09 project.
Send your door material, dimensions, weight, quantity and delivery destination. We can help you confirm the configuration, discuss samples and prepare a quotation.
- adam@fmahardware.com
- Phone
- +86 183 5719 1213
Enquire about PB09
Please include the model PB09 with your requirements.
