Pocket door hardware

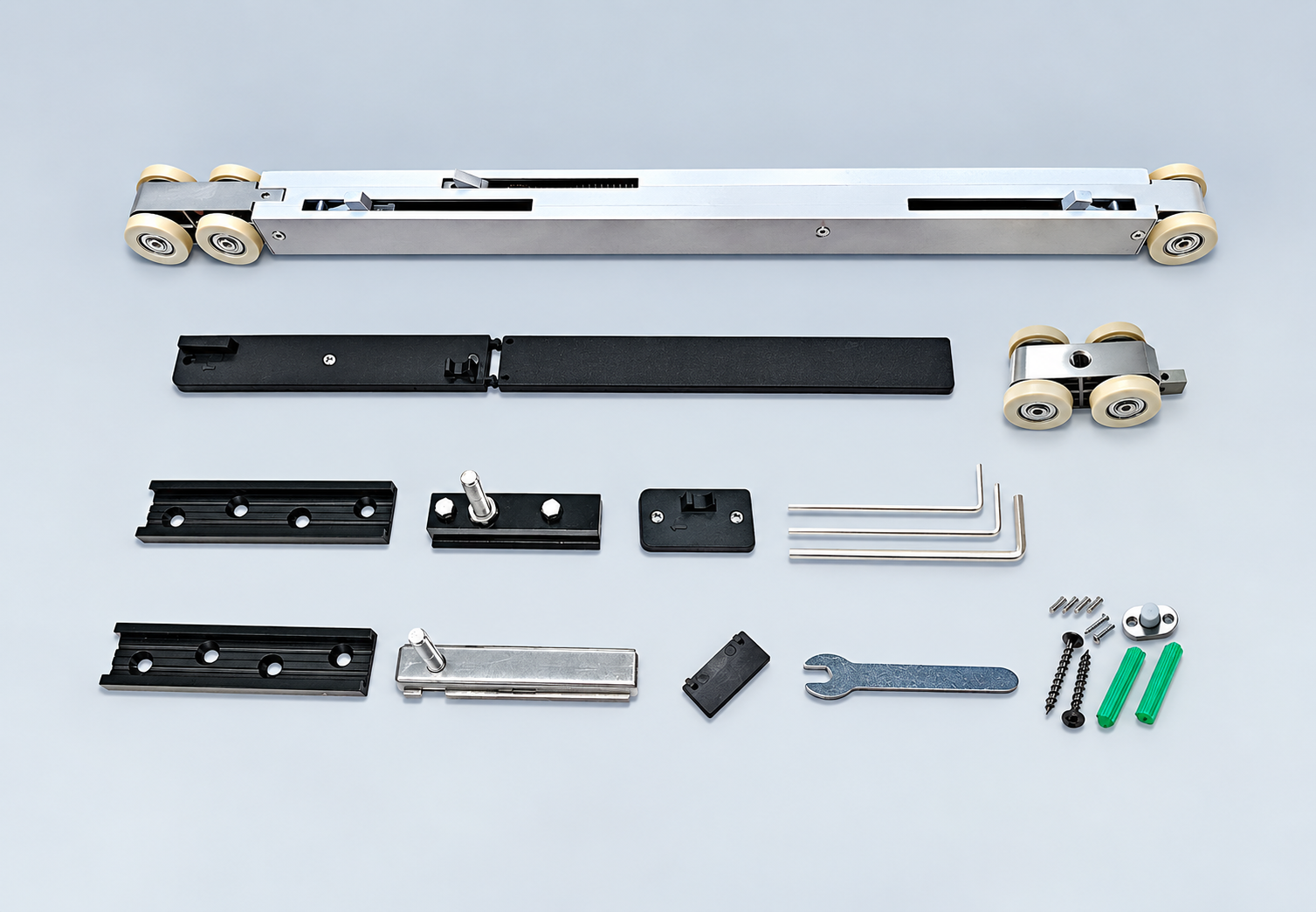

PD12Minimal-gap pocket door system
Wooden doors
- Door weight
- single door ≤ 80kg
- Door width
- 680mm
How it works
Key features.
- Integrated two-way soft-close and rebound mechanism.
- Controlled travel and accurate positioning when opening.
- Light pressure activates rebound and automatic closing.
- Quick-release track structure with adjustable positioning and no access opening.
- The door slides into the wall to keep the opening clear.
- Concealed lower guide for an uncluttered floor.
- Built-in steel reinforcement for improved noise reduction.
At a glance
Technical overview.
| Model | PD12 |
|---|---|
| Scope of application | single-leaf wooden sliding door |
| Adjustment performance | two-dimensional adjustment |
| Door weight | single door ≤ 80kg |
| Door width | 680mm |
Look closer
Drawings &
components.

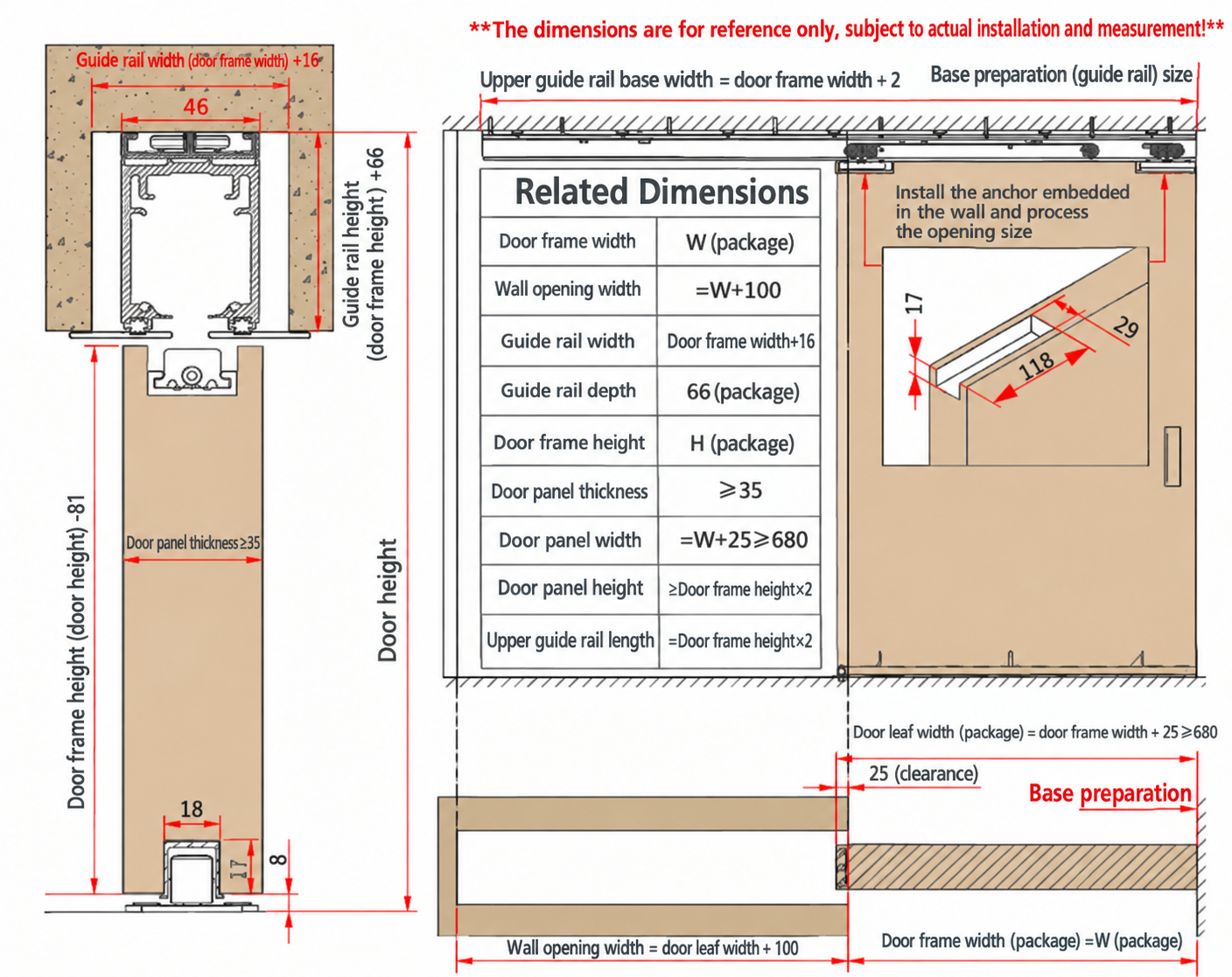

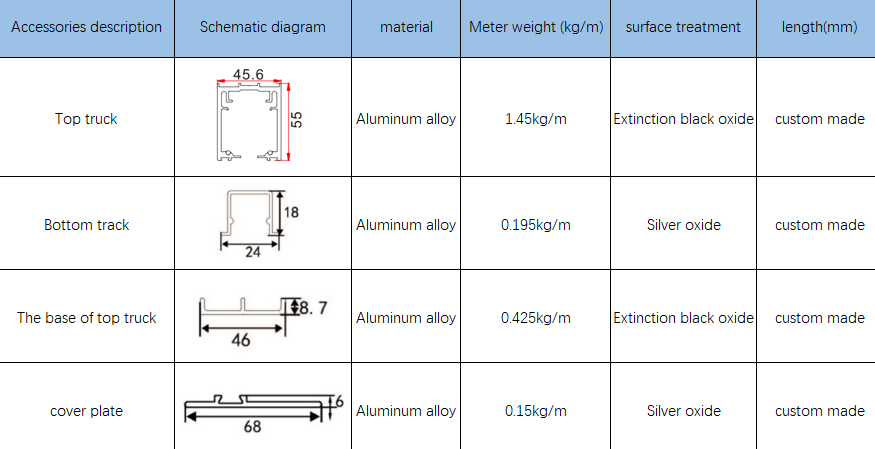

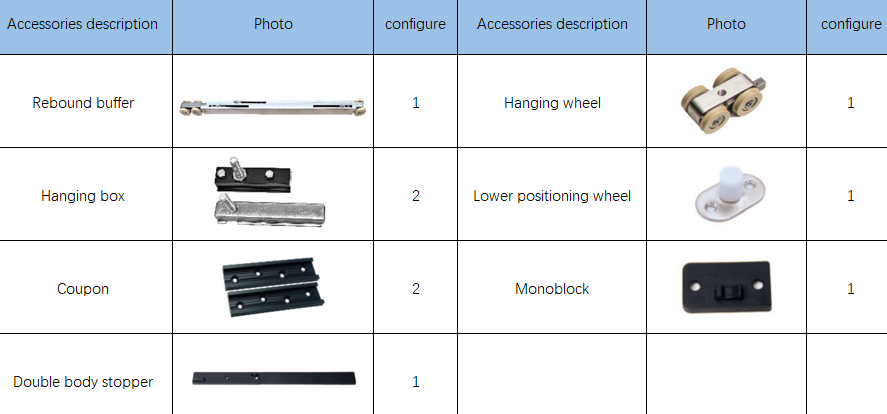

Review the component layouts and installation references for PD12. Select an image to open the original at full size.
Your next step
Let’s discuss
your PD12 project.
Send your door material, dimensions, weight, quantity and delivery destination. We can help you confirm the configuration, discuss samples and prepare a quotation.
- adam@fmahardware.com
- Phone
- +86 183 5719 1213
Enquire about PD12
Please include the model PD12 with your requirements.
