FMH HARDWARE
Flush sliding hardware

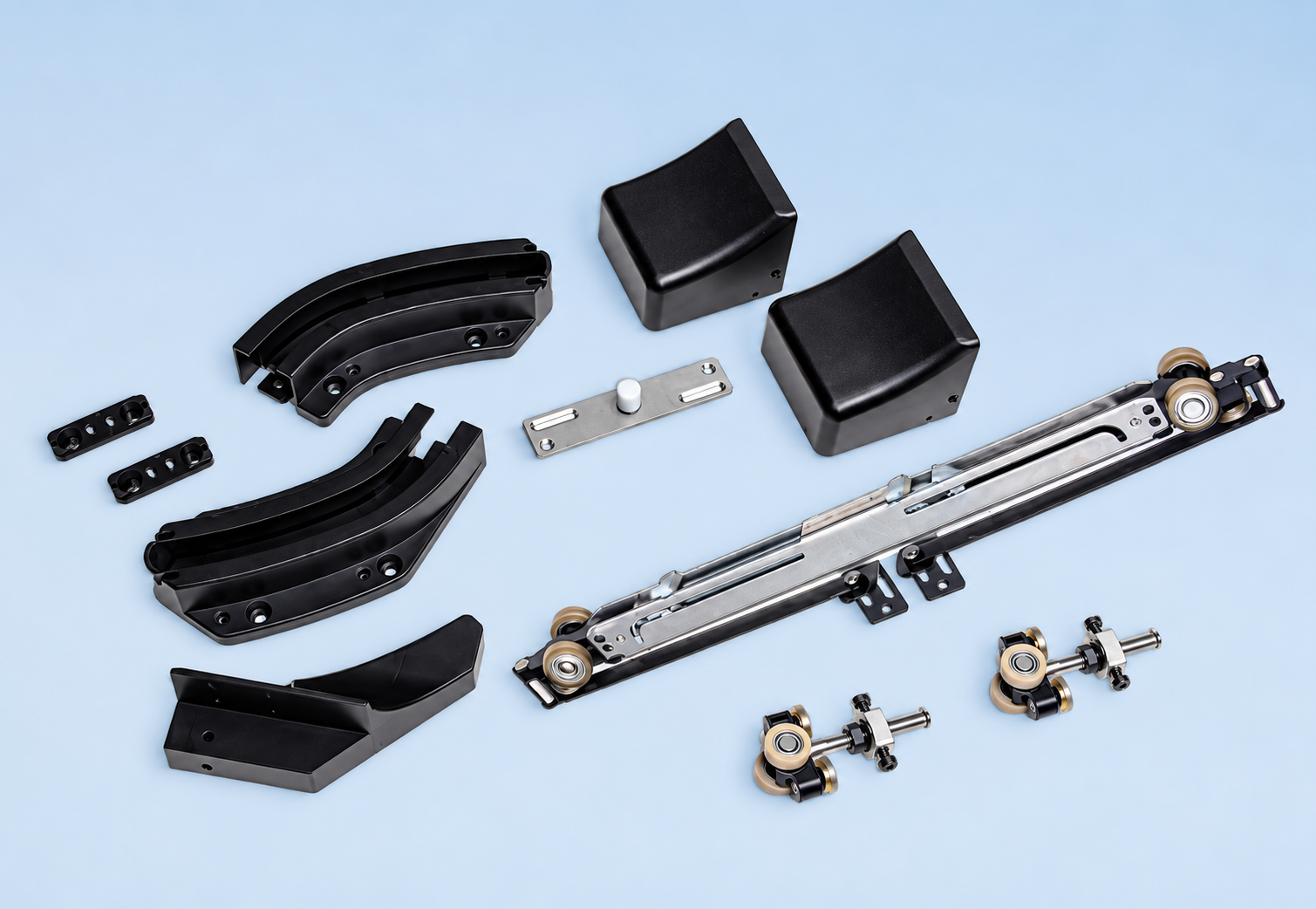

PC01Interior push sliding door system
Wooden doors
- Maximum door weight
- 80 kg
- Minimum door width
- 750 mm.
How it works
Key features.
- Flush-to-wall design for a clean, seamless appearance
- Compact track design saves installation space
- Durable steel track ensures smooth and stable operation
- Push-to-open design eliminates the need for a handle
- Trackless floor design for a clean, minimalist look
- Three-dimensional adjustment for easy installation
- Modular design for easier assembly, packaging, and transportation
- Standard track length: 2.4 m, can be cut to size
- Custom track lengths over 2.4 m are available.
At a glance
Technical overview.
| Model | PC01 |
|---|---|
| Application | Single-leaf wooden sliding doors |
| Adjustment | Three-dimensional adjustment |
| Maximum door weight | 80 kg |
| Minimum door width | 750 mm. |

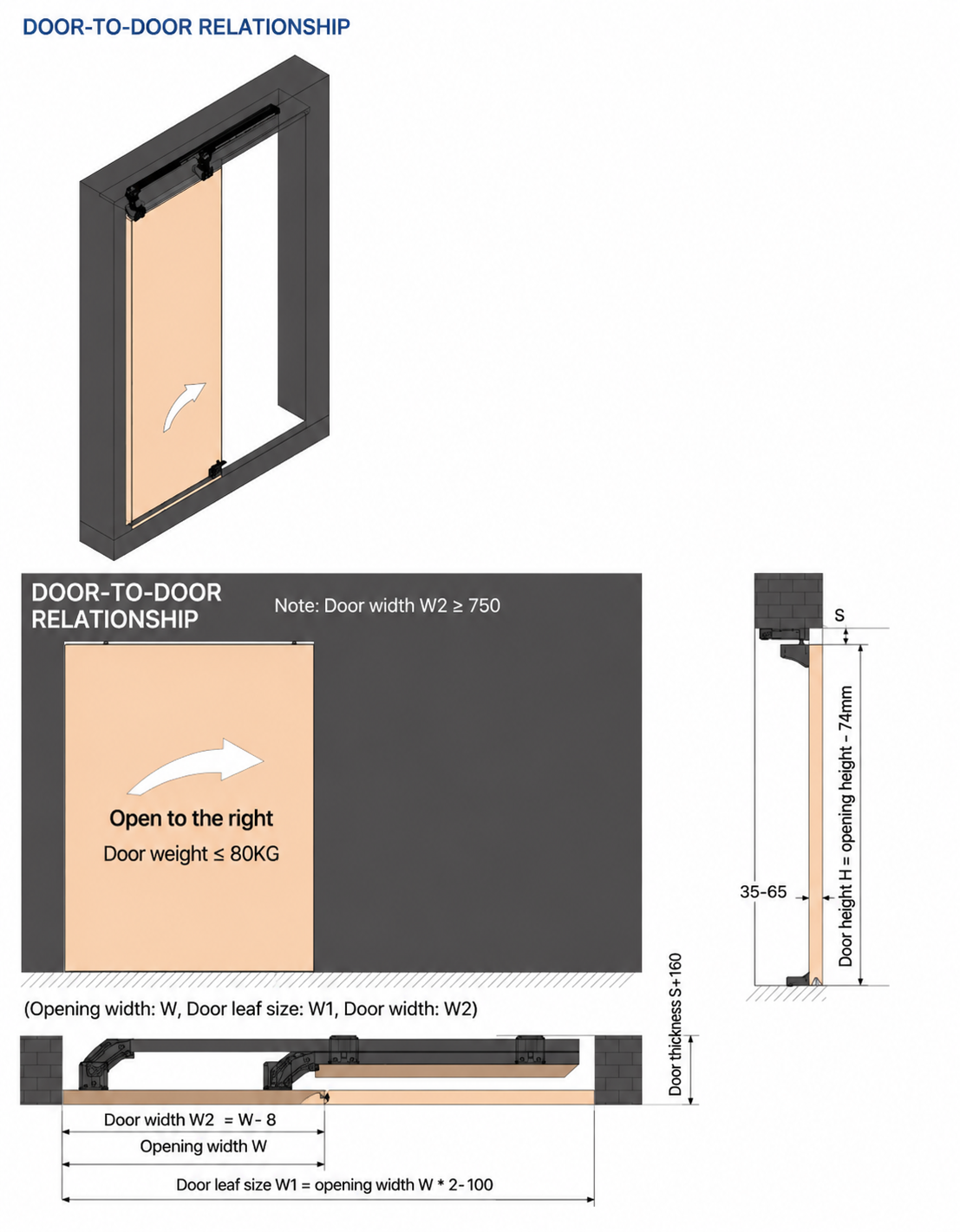

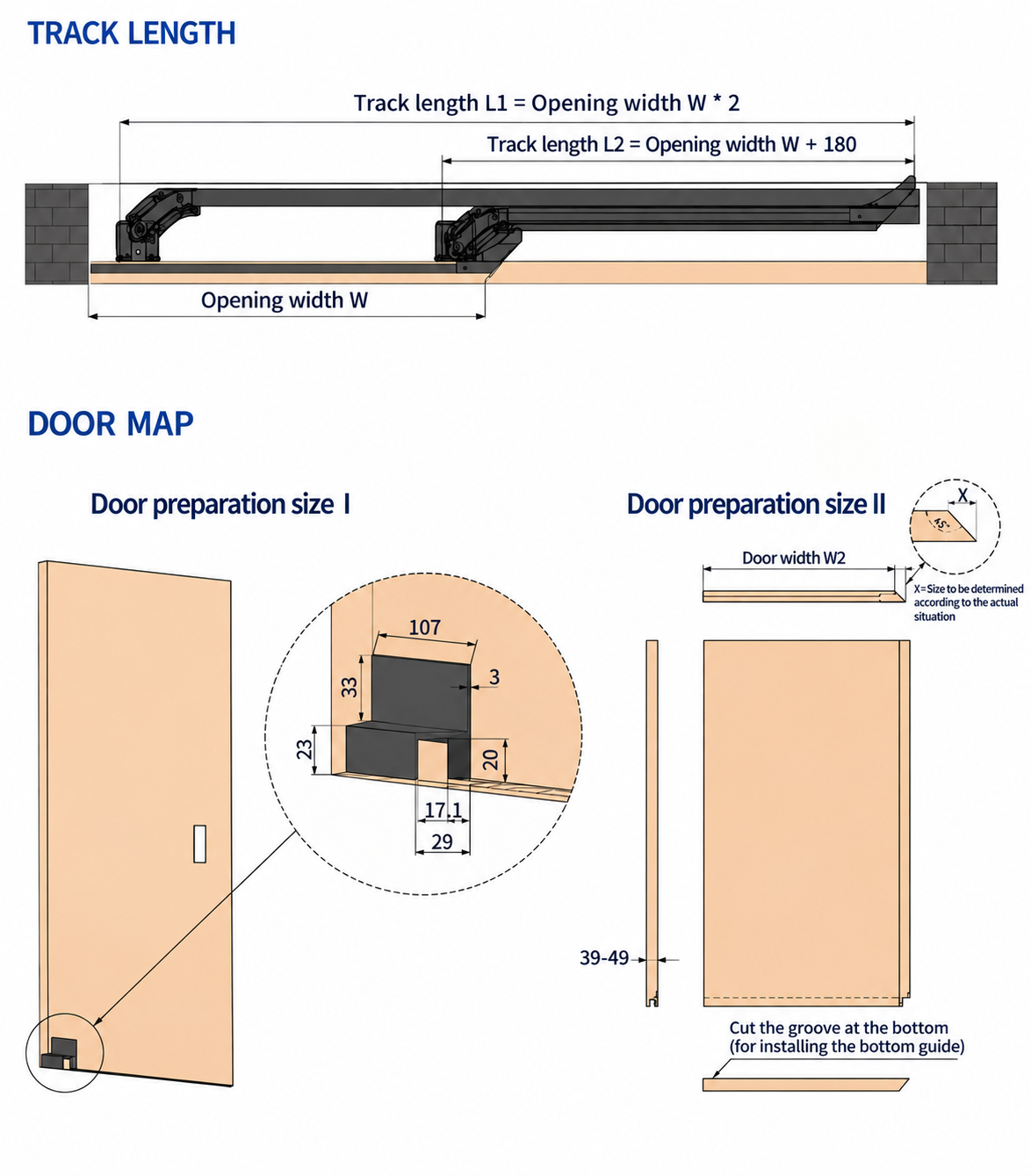

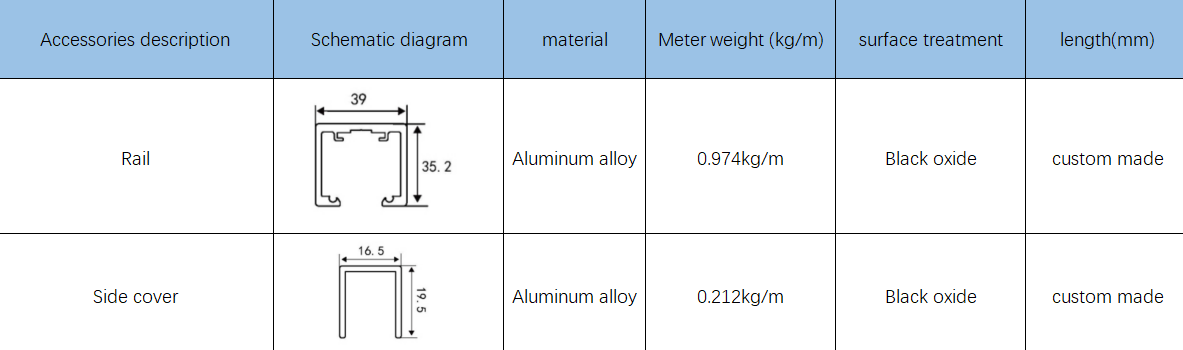

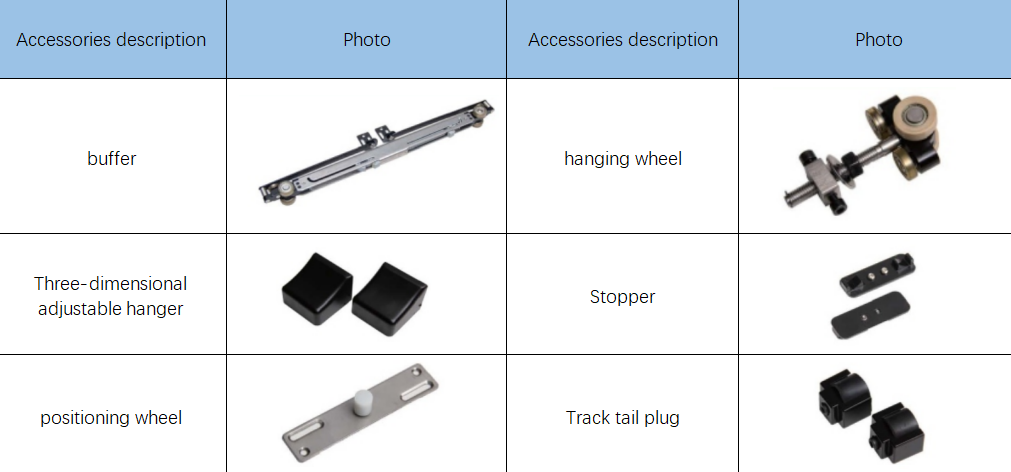

Look closer
Drawings &
components.
Review the component layouts and installation references for PC01. Select an image to open the original at full size.
Your next step
Let’s discuss
your PC01 project.
Send your door material, dimensions, weight, quantity and delivery destination. We can help you confirm the configuration, discuss samples and prepare a quotation.
- adam@fmahardware.com
- Phone
- +86 183 5719 1213
Enquire about PC01
Please include the model PC01 with your requirements.
