Sliding door hardware

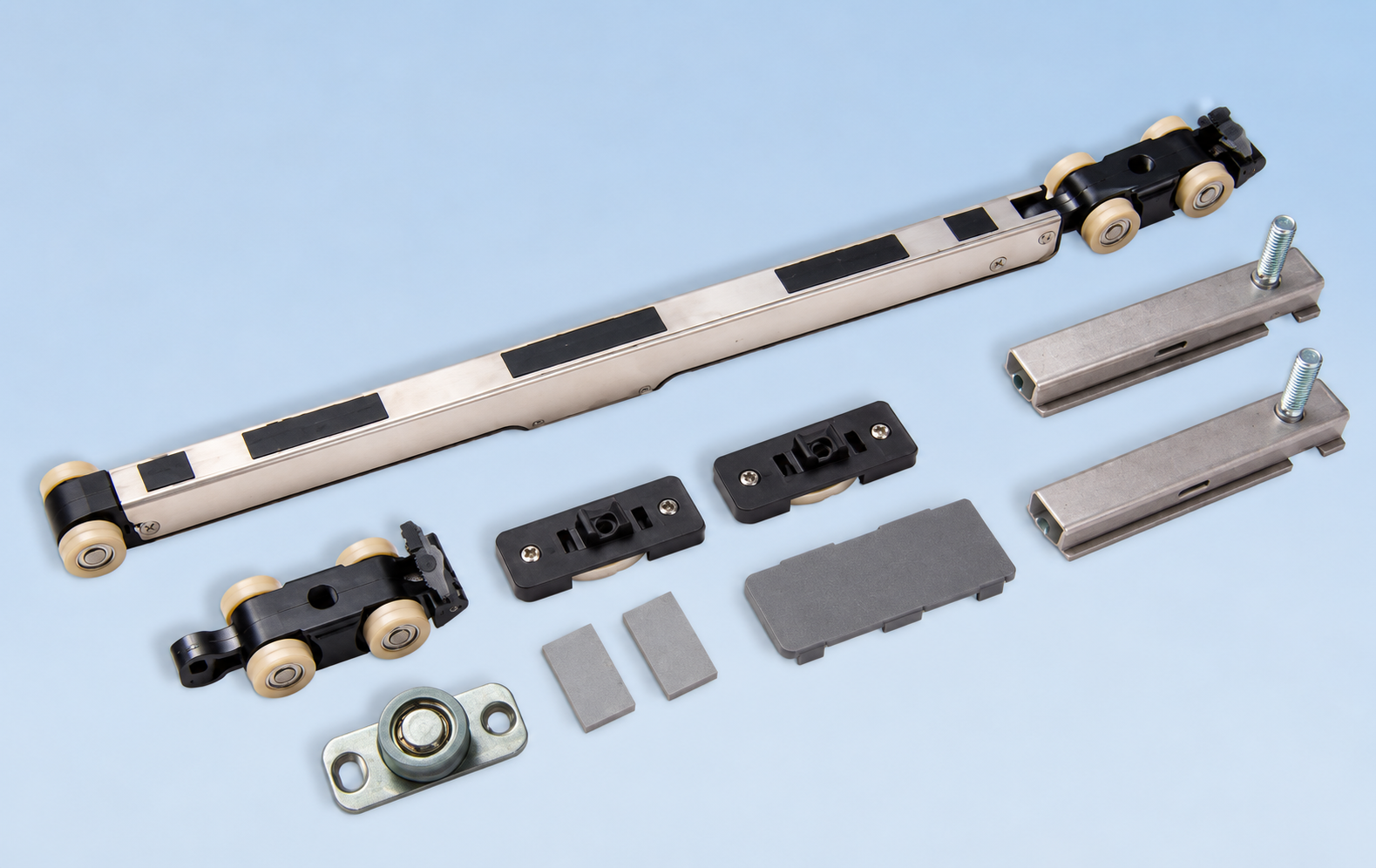

PE05Premium hanging wheel system
Aluminium-framed doors
- Maximum door weight
- 80 kg
- Minimum door width
- 650 mm.
How it works
Key features.
- Patented original design
- Two-way soft-closing system with a 75 mm damper stroke
- Automatic positioning and reset for easy, safe, and reliable installation
- Self-closing action over the final 70 mm prevents the door from slamming
- 90° rotatable hanger allows easy removal from the track for maintenance
- Specially designed rollers with steel ball bearings ensure smooth, quiet operation and excellent shock absorption
- Load capacity: 300 kg per hanger and 120 kg per soft-close unit
- Self-cleaning track design
- Balanced structure ensures reliable performance. Tested for 100,000 cycles with an 80 kg door, with no roller slippage or bearing deformation.
At a glance
Technical overview.
| Model | PE05 |
|---|---|
| Application | Single-leaf and double-leaf aluminum-frame doors |
| Adjustment | Adjustable door height |
| Maximum door weight | 80 kg |
| Minimum door width | 650 mm. |
Look closer
Drawings &
components.

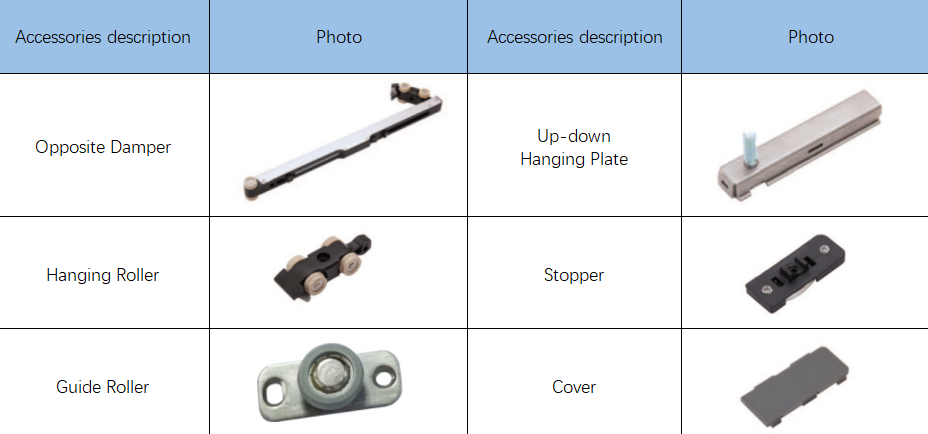

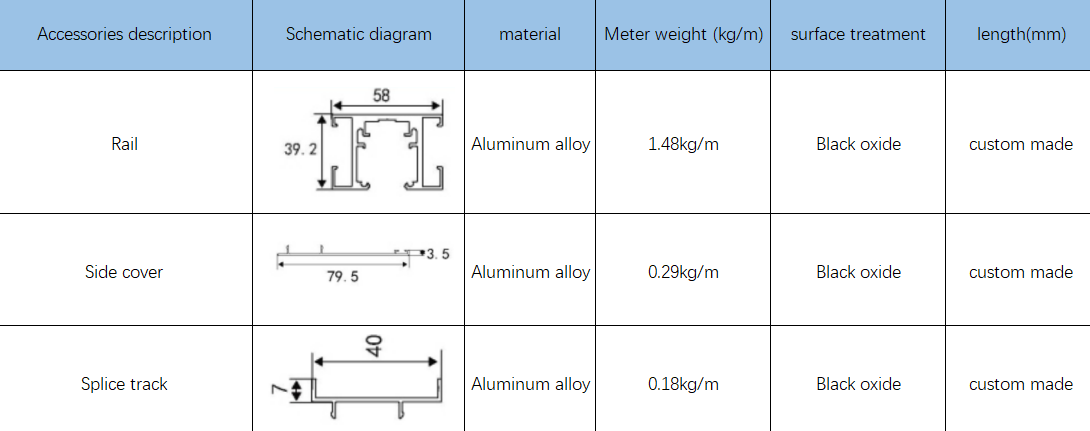

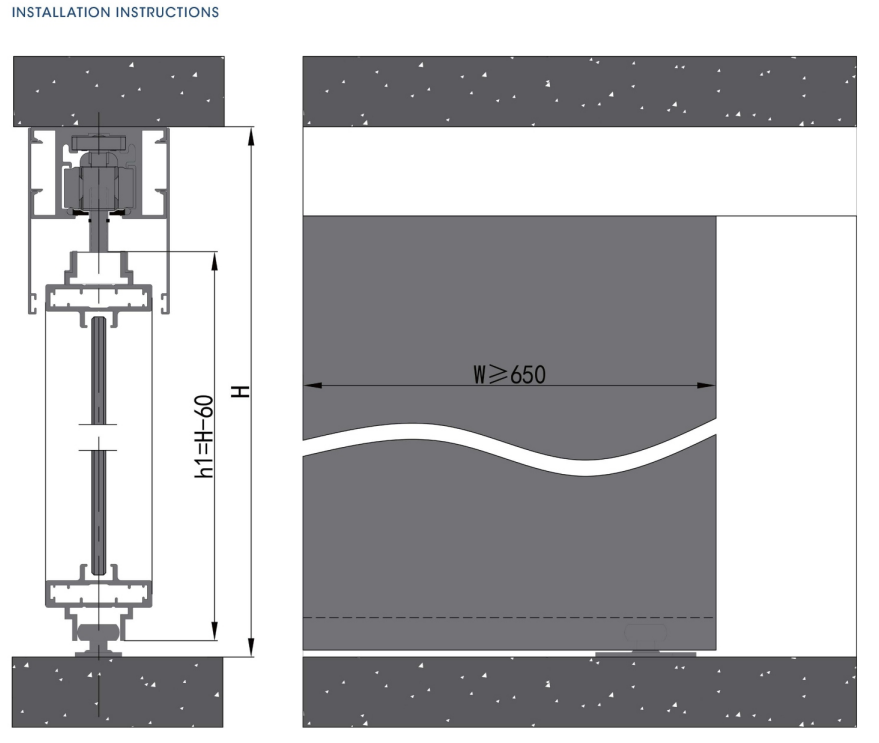

Review the component layouts and installation references for PE05. Select an image to open the original at full size.
Your next step
Let’s discuss
your PE05 project.
Send your door material, dimensions, weight, quantity and delivery destination. We can help you confirm the configuration, discuss samples and prepare a quotation.
- adam@fmahardware.com
- Phone
- +86 183 5719 1213
Enquire about PE05
Please include the model PE05 with your requirements.
