FMH HARDWARE
Sliding door hardware

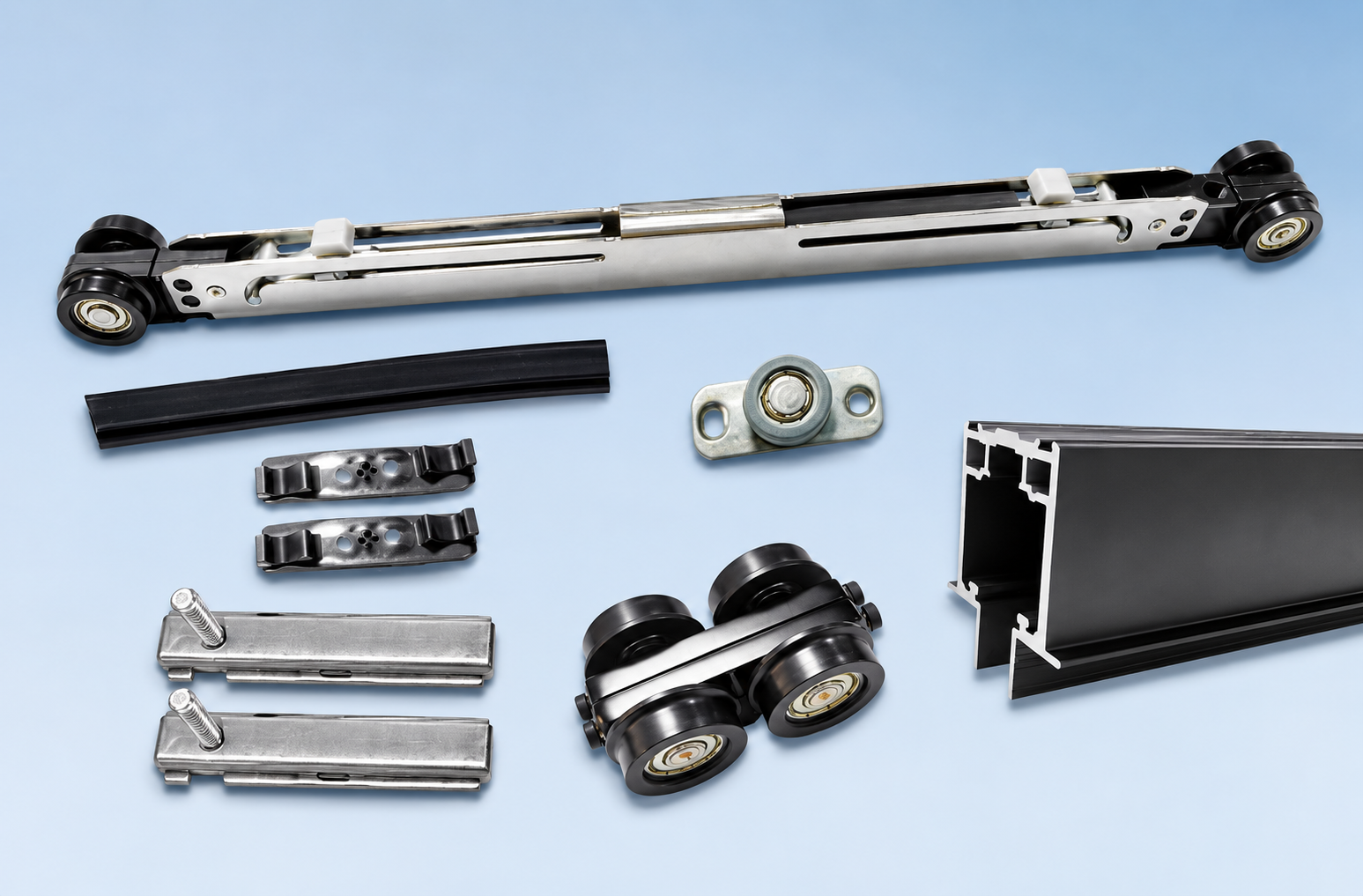

PE13Quick-release sliding wheel system
Aluminium-framed doors
- Maximum door weight
- 80 kg per door
- Minimum door width
- 560 mm.
How it works
Key features.
- Patented innovative design
- Quick-release soft-close unit requires no access opening
- Concealed ceiling-mounted track for a clean, seamless appearance
- Only 5 mm gap between the door and track for a minimalist look
- Removable hanger for easy replacement and maintenance
- Dual soft-close system with a 75 mm damper stroke
- Resettable soft-close mechanism
- Premium materials ensure quiet, smooth, and durable operation.
At a glance
Technical overview.
| Model | PE13 |
|---|---|
| Application | Double-leaf or multi-leaf wooden sliding doors |
| Adjustment | Adjustable door height |
| Maximum door weight | 80 kg per door |
| Minimum door width | 560 mm. |

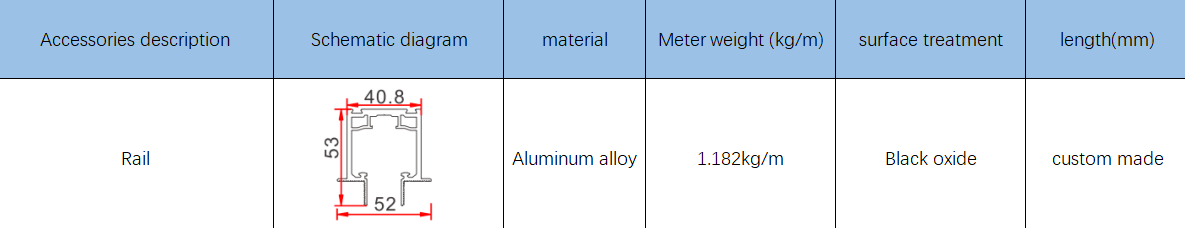

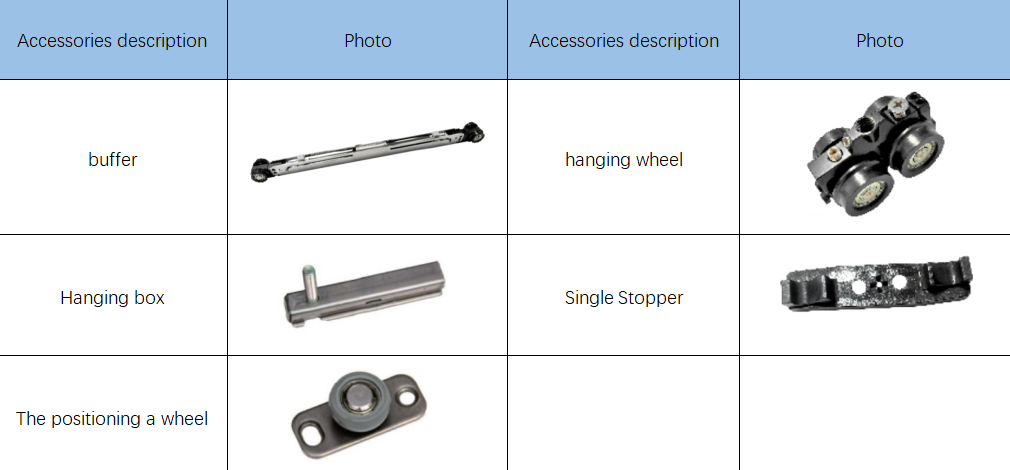

Look closer
Drawings &
components.
Review the component layouts and installation references for PE13. Select an image to open the original at full size.
Your next step
Let’s discuss
your PE13 project.
Send your door material, dimensions, weight, quantity and delivery destination. We can help you confirm the configuration, discuss samples and prepare a quotation.
- adam@fmahardware.com
- Phone
- +86 183 5719 1213
Enquire about PE13
Please include the model PE13 with your requirements.
