FMH HARDWARE
Pivot door hardware
PH75Off-axis / centre-axis pivot system
Aluminium-framed doors
- Maximum door weight
- 150 kg
- Maximum door width
- 2000 mm
How it works
Key features.
- Easy installation with minimal floor preparation
- Smooth and stable opening and closing without jamming
- Four-point positioning for smooth and precise operation
- Compact design, suitable for a wide range of door thicknesses
- Quiet and smooth operation for greater comfort
- Long service life, tested for up to 200,000 opening and closing cycles.
At a glance
Technical overview.
| Model | PH75 |
|---|---|
| Application | Single-leaf and double-leaf aluminum-frame or wooden doors |
| Maximum door weight | 150 kg |
| Maximum door width | 2000 mm |
| Pivot position | 85 mm to 1/4 of the door width. |

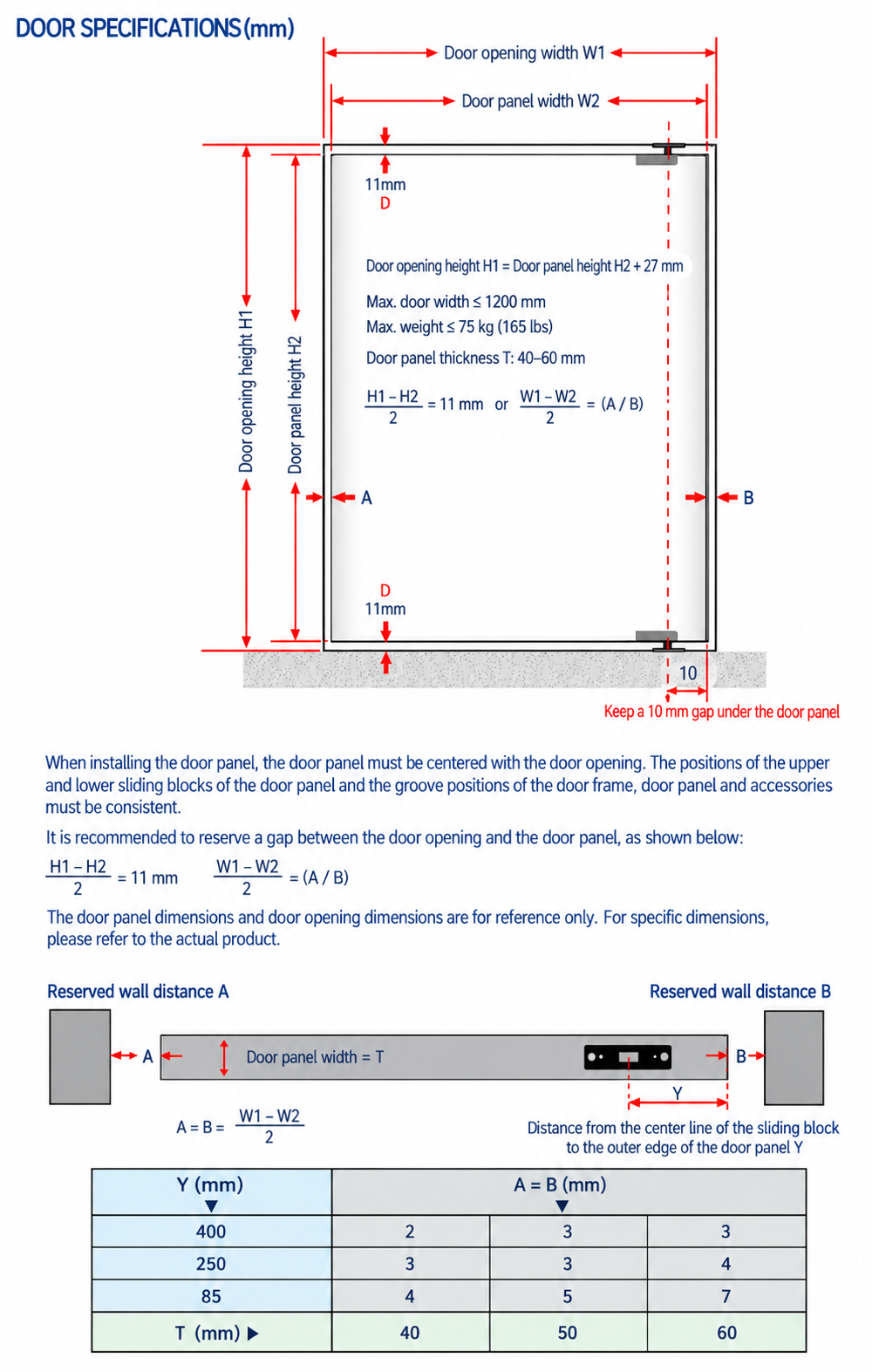

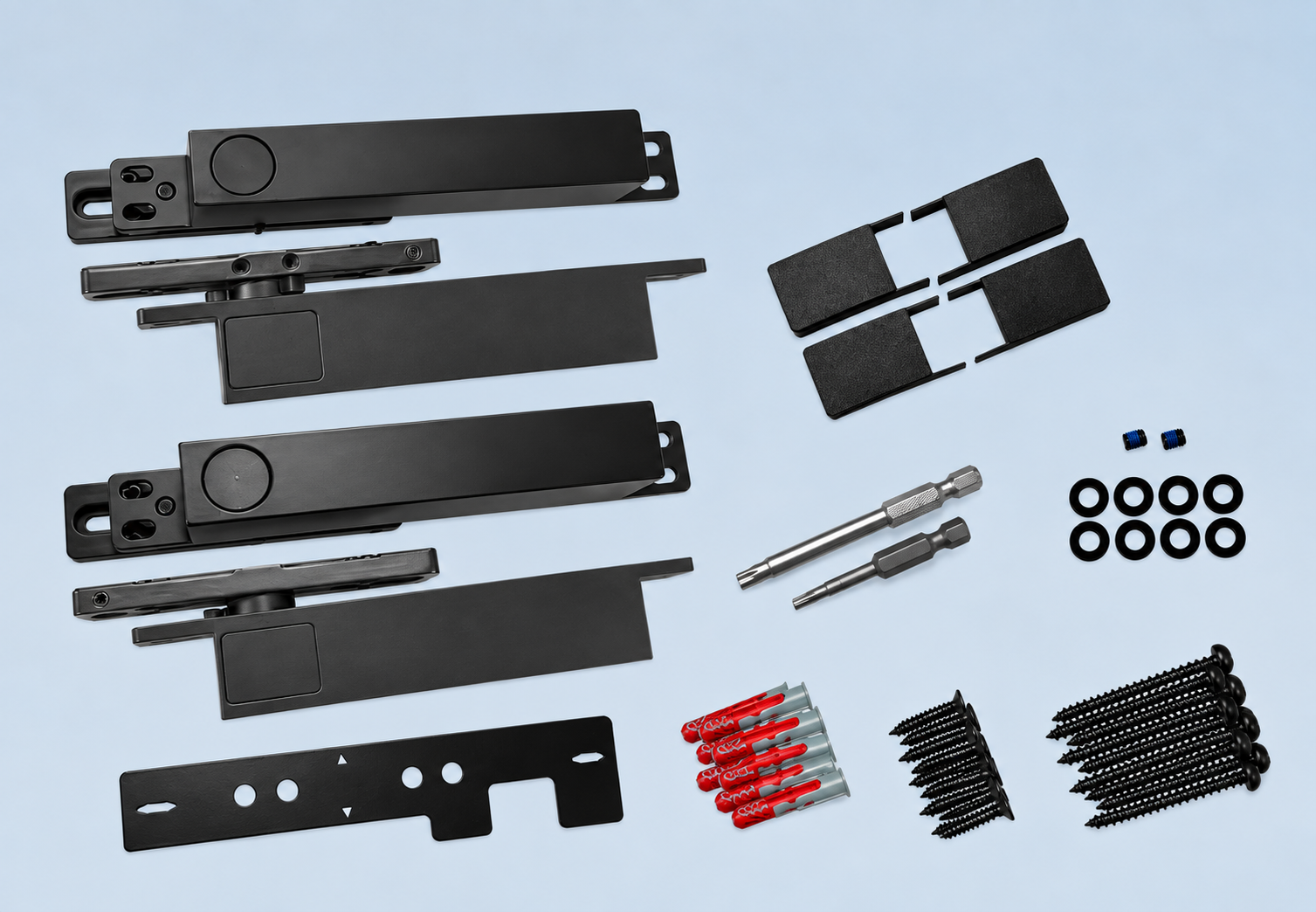

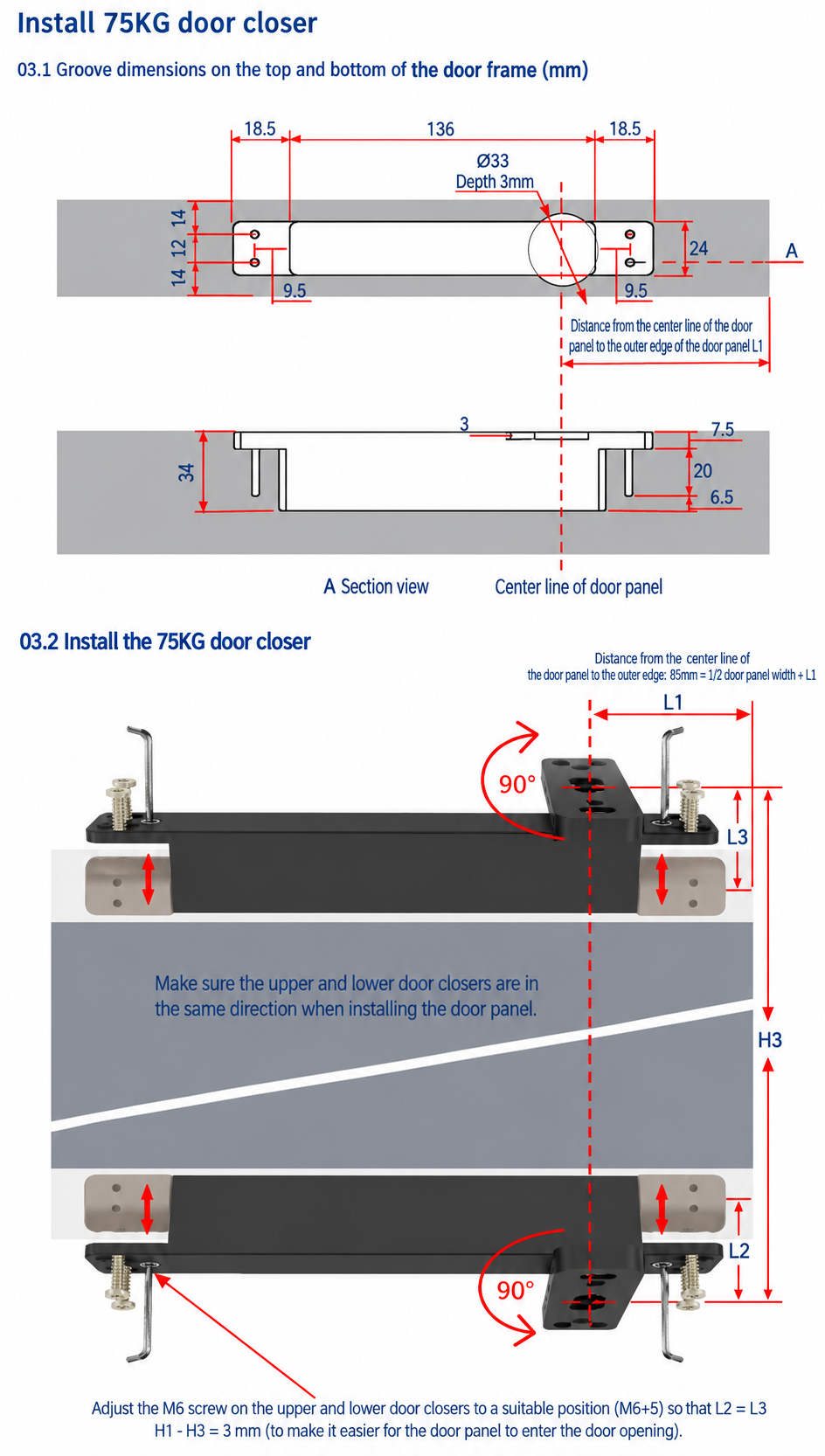

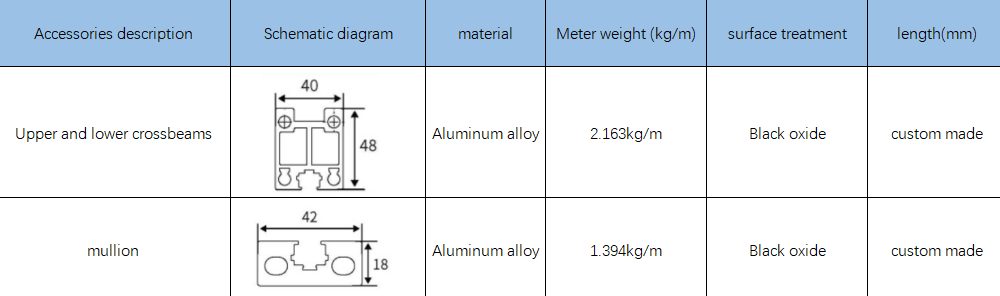

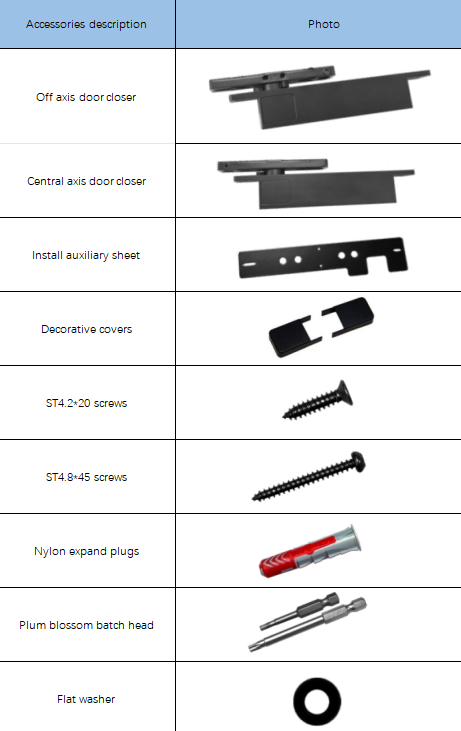

Look closer
Drawings &
components.
Review the component layouts and installation references for PH75. Select an image to open the original at full size.
Your next step
Let’s discuss
your PH75 project.
Send your door material, dimensions, weight, quantity and delivery destination. We can help you confirm the configuration, discuss samples and prepare a quotation.
- adam@fmahardware.com
- Phone
- +86 183 5719 1213
Enquire about PH75
Please include the model PH75 with your requirements.
